Assembly and configuration of the team’s physical router

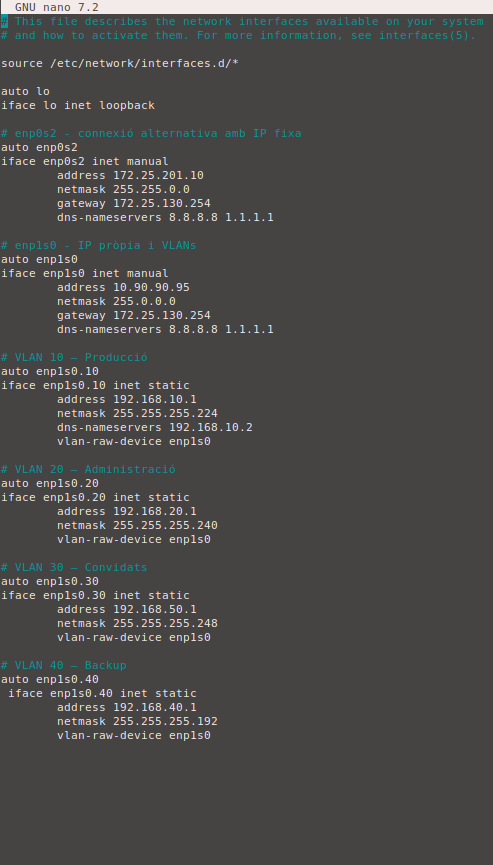

Let’s edit this file:

nano /etc/network/interfaces/

/etc/network/interfaces it’s a Debian server. Several interfaces are configured:

enp0s2: Alternative fixed IP (172.25.201.10)


enp1s0: Own IP (10.90.90.95)


VLANs over enp1s0:


VLAN 10 (Production): 192.168.10.1 /27


VLAN 20 (Administration): 192.168.20.1 /28


VLAN 30 (Guests): 192.168.50.1 /29


VLAN 40 (Backup): 192.168.40.1 /26

Each VLAN makes use of vlan-raw-device enp1s0. It is a manual configuration of IPs for each virtual network.

CONFIGURACIO SWITCH

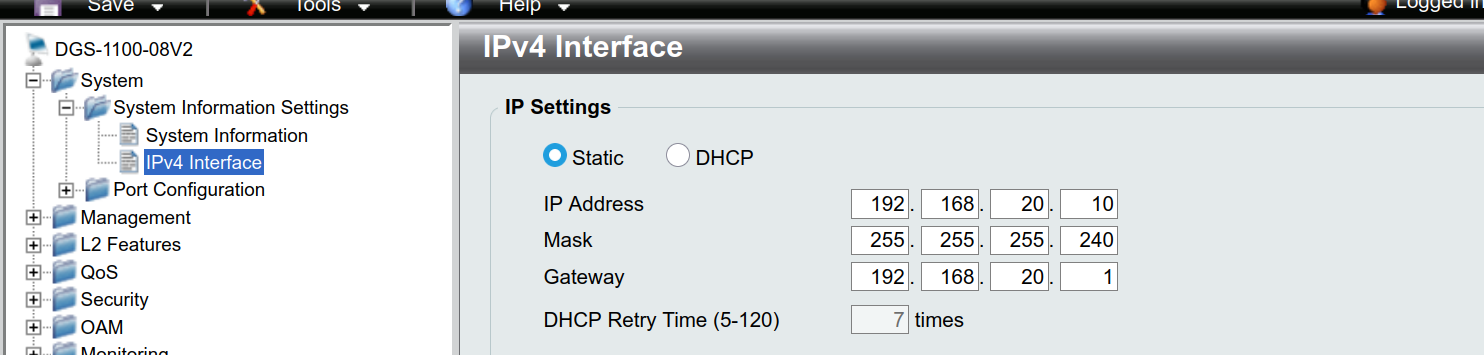

Change the switch IP to position in ADM VLAN

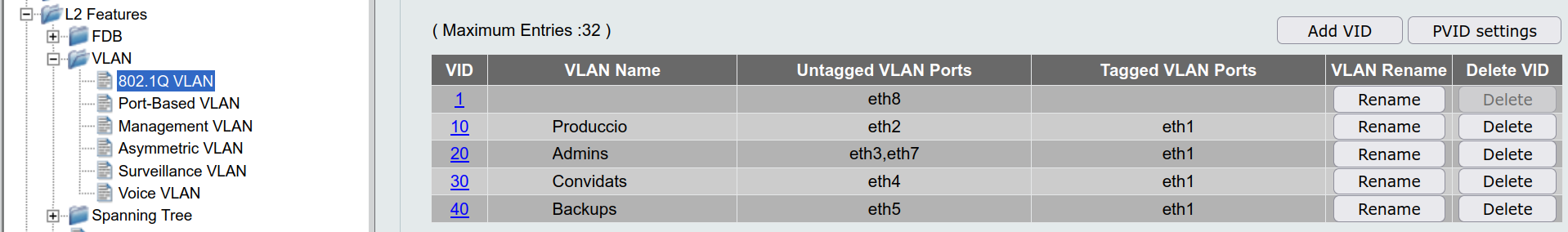

Ports configuration
