1. Lenovo ThinkCentre S4LS00 model spec sheet

– Processor: Intel Core i5-6400
– Nuclei: 2
– Speed: 3.9 GHz
– RAM: 8GB DDR4
– Graphics card: Intel HD Graphics 630 (integrated)
– Disc dur: Power SSD SATA 120GB 2.5″ SATA 3 6Gbps
– Connectivity: Gigabit Ethernet
– Connexions: 6x USB 3.1, 2x USB 2.0, 1x Serial, 1x Parallel, 1x VGA, 2x DisplayPort, 2x PS/2
– Dimensions: 290,5 x 343,5 x 92,5 mm
– Pes: 5,6 kg
– Color: Black

2. Necessary material

– Phillips screwdriver
– Anti-static bracelet
– Processor (CPU)
– RAM Memory
– SSD drive
– Graphics card (optional)
– SATA and power cables

Assembly steps

Initial preparation

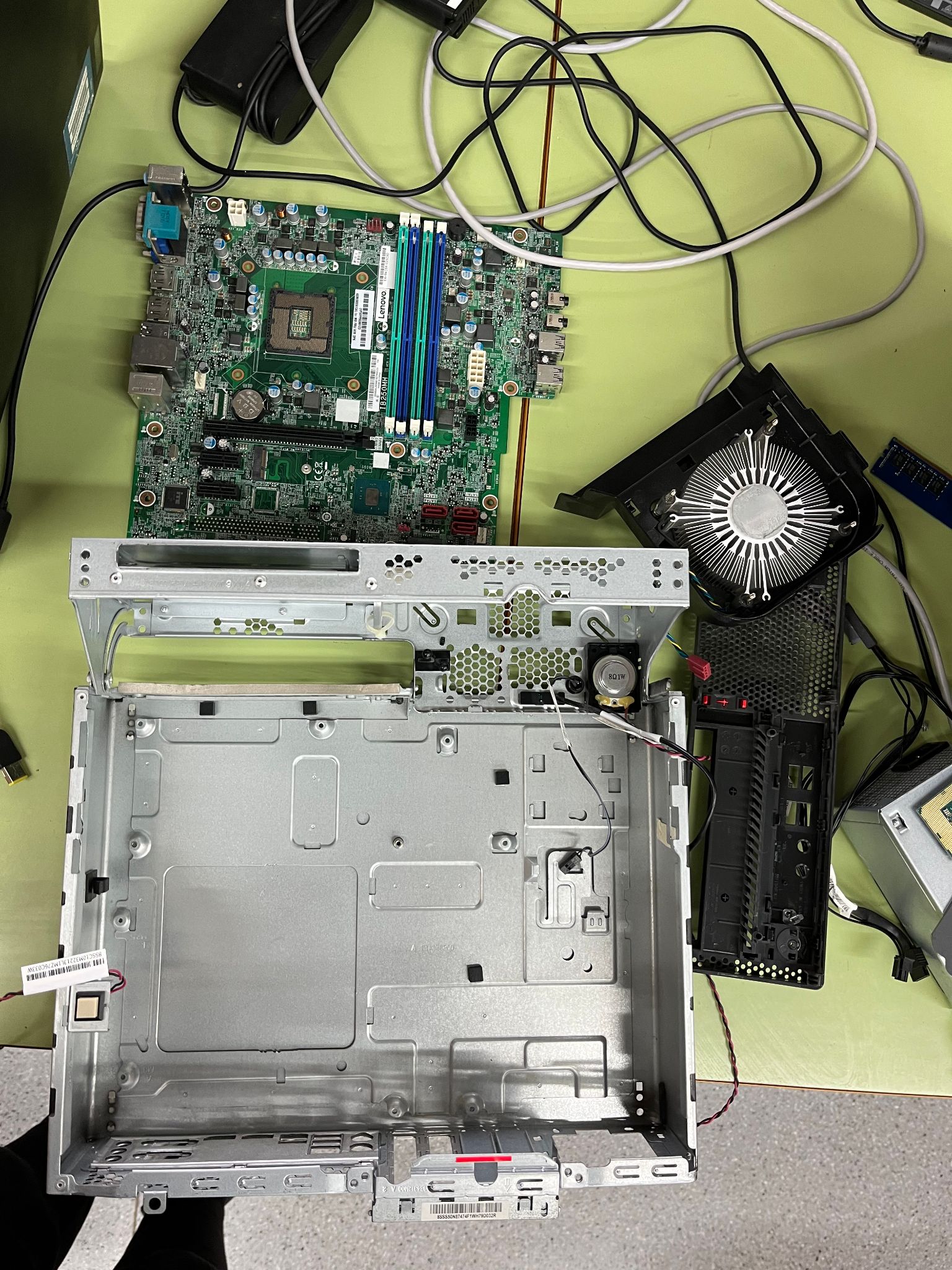

Photo of the open tower and components on the table:

Installing motherboard and connectors

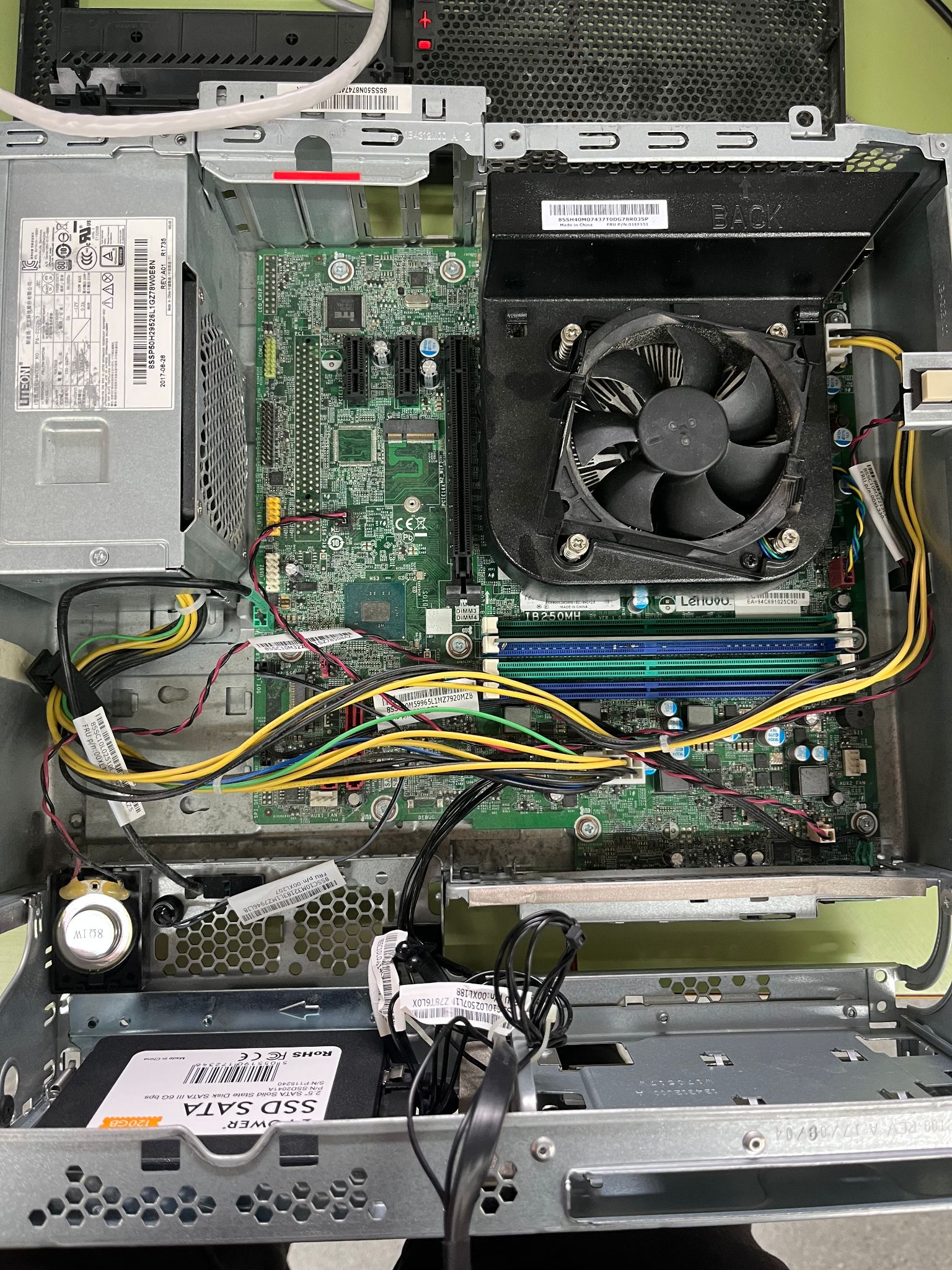

Assembled motherboard with cables and power supply:

CPU, RAM and SSD installation

In this step, the processor, RAM memory and the SSD disk are connected.

Final connections and verification

Check that all cables are properly connected and that there are no loose items.
